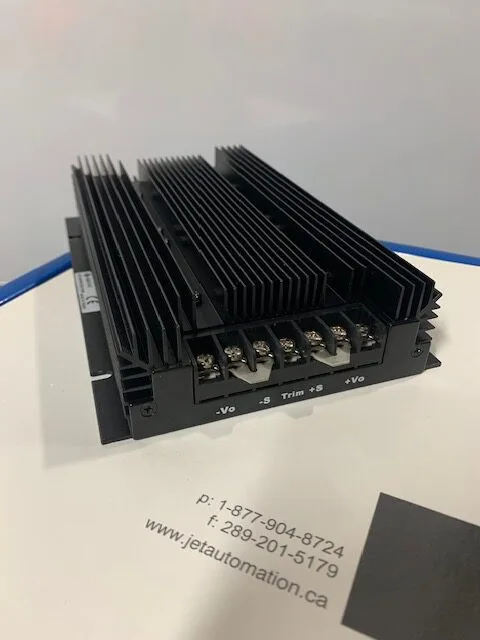

VFK400W-Q24-S24 – DC Converter

$1,049.99

DC/DC CONVERTER 24V 400W

The VFK400W-DIN series is a high efficiency isolated dc-dc converter housed in a rugged DIN rail package designed for easy installation in control cabinets. Supporting a 4:1 input range, the series is ideal for battery-driven applications where charging and discharging conditions require an ultra-wide input range. All units also come standard with an integrated heat sink, providing improved thermal performance for challenging industrial environments.

• up to 400 W isolated output
• rugged metal enclosure with integrated heat sink
• 4:1 input range (10~36 Vdc, 18~75 Vdc)
• single output from 12~48 Vdc
• 1,500 Vdc isolation
• over current, over temperature, over voltage,
and short circuit protection
• remote on/off
• efficiency up to 87%

SKU: CAYPP00001 Category: Brand:

Description

Enclosed DC DC Converter 1 Output 24V 16.7A 36V Input

Product Specifications

  • Regulation
    Yes
  • Package Type
    DIN Rail
  • Isolation (Vdc)
    1500
  • Dimensions LxWxH (in)
    7.83 x 5 x 2.11
  • Dimensions LxWxH (mm)
    199 x 127 x 53.6
  • Protections
    Over Current, Over Temperature, Over Voltage, Short Circuit
